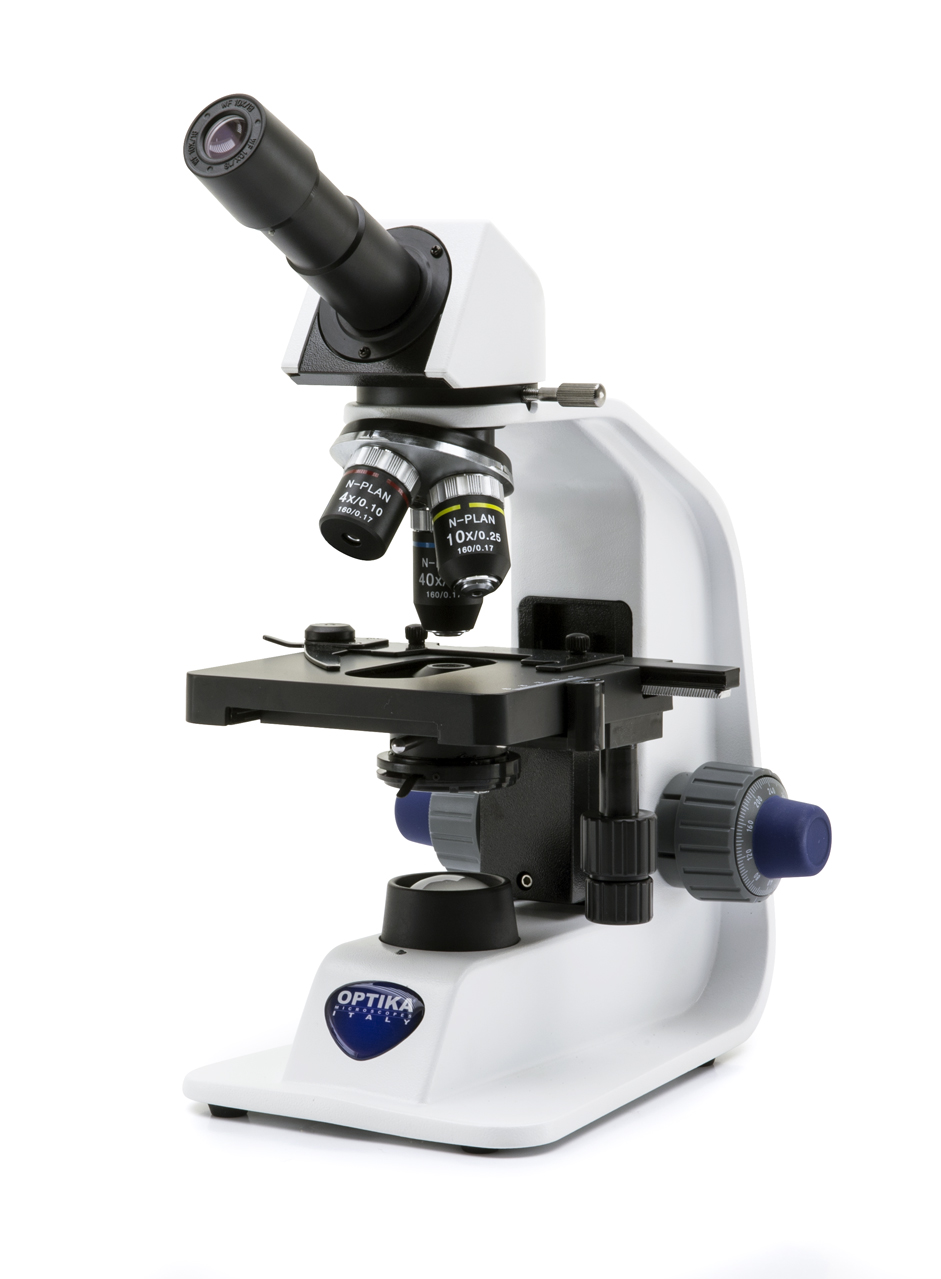

B-152R-PL
Monocular brightfield microscope, PLAN, multi-plug

Rechargeable models are equipped with N-PLAN objectives and have internal lithium rechargeable battery for up to 15 hours (at medium intensity) of outdoor use.
All other models can be equipped with the optional external solar battery pack for field use.



Head
Monocular, 30° inclined, 360° rotating
Eyepieces
WF10x/18mm
Nosepiece
Quadruple
Objectives
N-PLAN 4x, 10x, 40x
Stage
Double layer, 125×116 mm, moving range 70×30 mm
Focusing
Coaxial coarse and fine, limit stop
Condenser
Abbe N.A. 1.25, iris diaphragm, focusable
Illumination
1 W X-LED1, manual brightness control, Li-Ion rechargeable battery





Related Documents:
Qty
Get a Quote

Comparison chart

B-150 – Cordless Models, with N-PLAN Objectives and
Li-Ion Rechargeable Batteries

Accessories (not included)

  • WF10x/18 eyepiece, high eyepoint M-002.1
  • WF16x/12 eyepiece M-003
  • WF10x/18 micrometric eyepiece, high eyepoint M-004
  • WF10x/18 eyepiece, high eyepoint, with pointer M-008
  • HC (high contrast) objective 4x/0.10 M-137
  • HC (high contrast) objective 10x/0.25 M-138
  • HC (high contrast) objective 20x/0.40 M-139
  • HC (high contrast) objective 40x/0.65 M-141
  • HC (high contrast) objective 60x/0.85 M-142
  • HC (high contrast) objective 100x/1.25 (oil) M-143
  • Attachable mechanical stage (only for B-151) M-040
  • Polarising set (filters only) M-155
  • Plane-concave mirror, with base M-972
  • Solar charger M-069
  • Micrometric slide, 26x76mm, with 2 scales (1mm/100 & 10mm/100) M-005
  • Immersion oil, 10ml 15008
  • Cleaning kit 15104
