Cobra SMARTsense – Weatherstation (Bluetooth + USB)

WEATHERSTATION

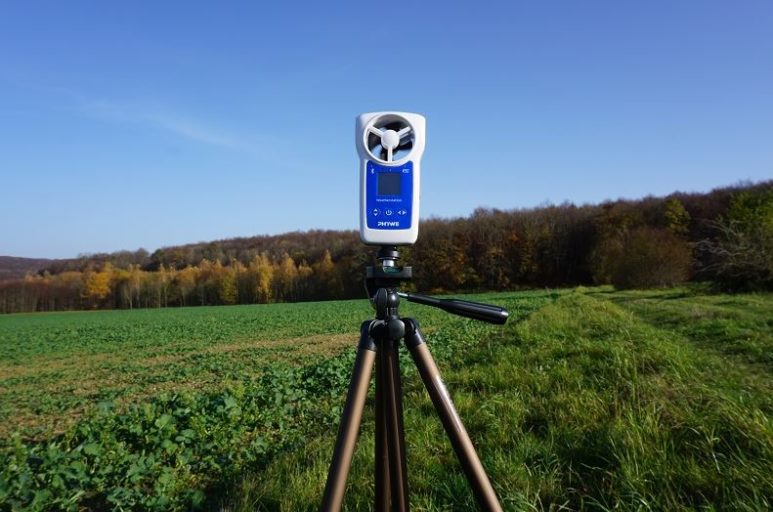

All-in-one handheld meter for measuring complex ambient conditions. Make long-term measurements using the wind vane and the tripod supplied, or use the hand-held meter to record environmental conditions, relevant to environmental phenomena.

Function and Applications
Cobra SMARTsense is the ideal solution for inexpensive digitalization of science teaching. The sensors connect wirelessly (Bluetooth) or wired (USB) directly to the student’s digital end device (smartphone, tablet or desktop PC). Using the free and award-winning measureAPP measurement software for iOS, Android and Windows, measured values can be easily recorded and graphically displayed. If more evaluations are needed, the measureLAB measurement software for Windows and macOS can be used.
Perfect for student experiments.

Equipment and Technical Data

Weather measurement data

• Wind speed:
  • Range: 2 … 50 km/h
  • Resolution: 0.1 km/h
• Wind direction:
  • Range: 0 … 360 °
  • Resolution: 1 °
• Ambient temperature:
  • Range: -40 … 125 °C
  • Resolution: 0.01 °C
• Relative humidity:
  • Range: 0 … 100 %
  • Resolution: 0.1 %
• Absolute humidity:
  • Range: 0…600 g/m³
  • Resolution: 0,01 g/m³
• Dew point:
  • Range: -10 … 40 °C
  • Resolution: 0.01 °C
• Wind Chill:
  • Range: -70 … 10 °C
  • Resolution: 0,01 °C
• Barometric pressure:
  • Range: 45 …110 kPa
  • Resolution: 0.01 kPa

Light measurement data

• Ambient light:
  • Range: 0 … 128000 Lx
  • Resolution: 1 °
• UV index:
  • Range: 1 … 12
  • Resolution: 0.01
• Photosynthetically active radiation (PAR):
  • Range: 0 … 2400 μmol/m²/s
  • Resolution: 1 μmol/m²/s
• Radiant intensity:
  • Range: 0 … 510 W/m²
  • Resolution: 0,1 W/m²

GPS measurement data

• Altitude
  • Range: -9000 … 18000 m
  • Resolution: 1 m
• Longitude:
  • Range: ± 180 °
  • Resolution: 1 °
• Latitude:
  • Range: ± 90 °
  • Resolution: 1 °
• Speed:
  • Range: 0 … 800 km/h
  • Resolution: 0,1 W/m²
• True Direction:
  • Range: 0 … 360 °
  • Resolution: 0.01 °

• Samplerate: 10 Hz

Wind vane and tripod are included.

The sensor contains a USB-C rechargeable lithium polymer battery.
